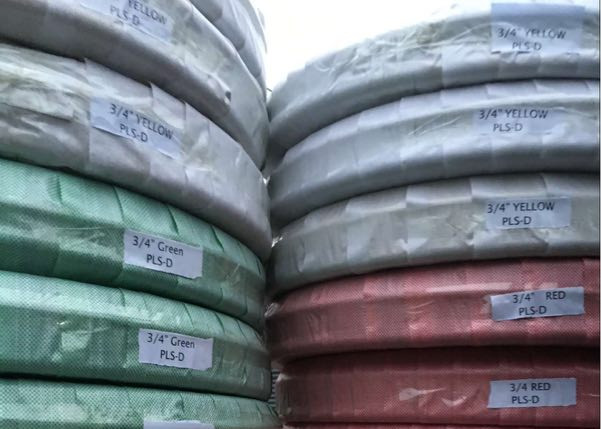

3/4" Fuel Dispensing Hose with Red / Yellow / Green / Color for Service Station
Specifications
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| | inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| HPR-1 | 5/8’’ | 15.9 | 25.4 | 30 | 450 | 120 | 1740 | 50 | 0.07 | 0.57 |
| HPR-2 | 3/4’’ | 19 | 28 | 30 | 450 | 120 | 1740 | 50 | 0.08 | 0.65 |
| HPR-3 | 1’’ | 25 | 35.5 | 30 | 450 | 120 | 1740 | 50 | 0.124 | 0.82 |
Structure:
Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: EPDM
Temperature: -40℃ to +100℃
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 20m, 50m (Random Length)
Superiority: Strong ageing resistance; Not easy to creak even under high environment temperature; Good gasoline resistance; Excellent anti-static electricity; Safe; At the same quality level as Good year.
Quality warranty: The Quality warranty for our Hose is 12months.
But in real application, if you use it under correct conditions, there's no problem to use for 24months
The " TEST" we do for every batch of Hose:
1) Test the " adhesiveness" between wires and rubber. Every batch of wires will be tested.
2) Test the " break strength" of wire. The standard wire we use is 2750N, we will test the " strength " of every batch of wire.
3) Test the " Pressure" of Hose, evey roll of Hose will be tested.
4) Test the "rubber sheet break strength" and " rubber sheet elongation at break".
5) Test " rubber wear-resisting property "
6) Test " rubber aging resistance "
7) Test " ozone resistance ".
8) Test " low temperature resistance ".
9) Test " hose electrical conductivity ".
10) Test " bending properties".
11) Test " incombustibility".
