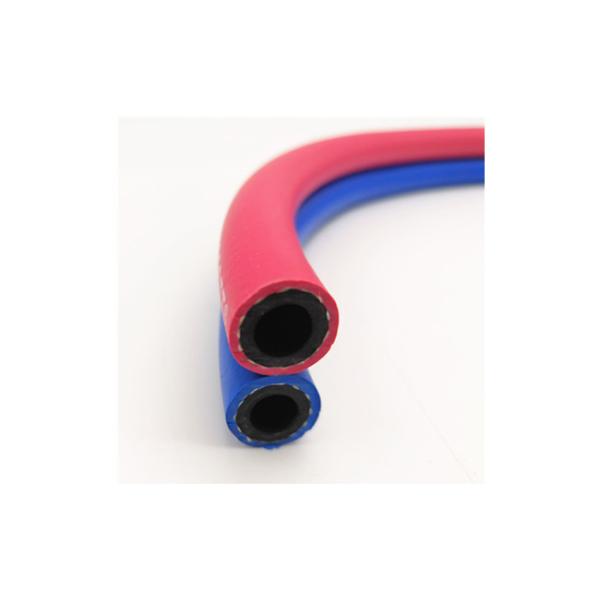

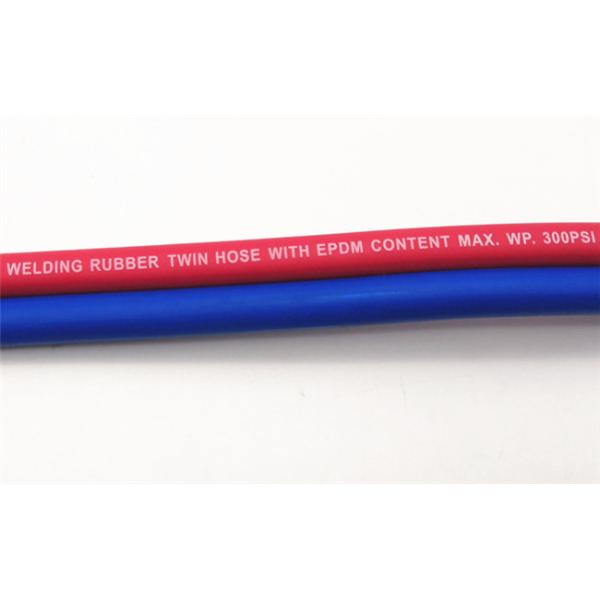

RMA IP-7 W.P 300psi Diameter 6mm Fiber Braided Dual Welding Hose
Specifications:
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| PTW-05 | 3/16"&3/16" | 4.8 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.04 | 0.28 |
| PTW-06 | 1/4"&1/4" | 6.3 | 13 | 20 | 300 | 60 | 900 | 100 | 0.06 | 0.34 |
| PTW-0608 | 1/4"&5/16" | 6.3+8.0 | 13+15 | 20 | 300 | 60 | 900 | 100 | 0.062 | 0.39 |
| PTW-08 | 5/16''&5/16'' | 7.9+7.9 | 15+15 | 20 | 300 | 60 | 900 | 100 | 0.07 | 0.42 |
| PTW-0810 | 5/16"&3/8" | 8+10 | 15+17 | 20 | 300 | 60 | 900 | 100 | 0.075 | 0.48 |
| PTW-10 | 3/8"&3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 0.08 | 0.52 |
Description:
1, Construction: Tube: SBR Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM Synthetic Rubber
2, Appearance: Smooth
blue line for oxygen rubber hose
Red line for fuel gas hose, e.g. acetylene
3, Applicable temperature: -25°C to +90°C
4, Standard length: 50m, 100m roll
5, Bend radius: 10 times of proper diameter dimension
6, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offer,
but shall be charged additionally.
7, Trademark: PASSION, OEM is available
8, Property: Anti-ozone aging, Heat-proof aging, Corrosion resistance and excellent flexibility.
9, Quality Standard: EN559 / CGA/RMA IP-7
10, Certificates: CE, SGS, ISO
11, Main market: Middle East, Europe and America
12: Joint Connection:
Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;
Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc
Brass teeth of American system (G9/16 18N), America, Middle East and South America
etc.
Australian system (5/8-18N), Australia etc
Applications:
Green / Blue line- a flexible hose for transporting oxygen for welding and cutting, for arc
welding using shielding gas and related processes.
Red line- a flexible hose for transporting acetylene for
welding and cutting, for arc welding using shielding gas and related processes. Also suitable for
hydrogen, coal gas and carbon
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China
. 13 years manufacturing experience, 50 sets of braiders and 3 production lines.
Free sample can be offered, and we can customize as your request.
Cooperative Brand:
WELDMAN, Max Weld, Goldenflex, SAEFLEX. REDI-WELD
Company Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
